Display the Missing Associated View in CRM 2013

Sometimes, you need to show the Associated View from the Relationship in CRM 2013, you know that adding new subgrid might be making your Form UI looks cluttered, then you should go to the Form Editor and add the Navigation.

But, some relationship are hidden and cannot be shown in CRM 2013.

So, how do we handle this?

For example, we cannot show the Associated View of related Lead from Account/Contact and we cannot show the related Lead owned by User in User form.

So, to handle this case, you should create a custom Navigation link + the custom Web Resource, you should refer first to this link, Thanks to Amreek Singh for the nice post:

But, in CRM 2013, since the User Interface was changed and the parameters required were revamped as well, so the constructed URL will give error if you apply to CRM 2013.

So, still using the methods mentioned in that great post, in CRM 2013 you should add another parameter.
In the building URL, you should use this:

 //building a url
var sUrl = "/userdefined/areas.aspx?oId=" + oId + "&oType=" + oType + "&pagemode=iframe&security=852023&tabSet=" + relName&rof=false&inlineEdit=1;

Add the &inlineEdit=1 to show the CRM 2013 Command Bar (not Nav Bar)

So, the complete Web Resource code:
<html xmlns="" >
    <title>Untitled Page</title>
    <style type="text/css">html,body{font-family: Segoe UI, Tahoma, Arial;background-color: #d6e8ff;border: 0px; margin: 0px; padding: 0px;}</style>
    <script type="text/javascript" language="javascript">


            //get the context
            var Xrm = window.parent.Xrm;

            //get the current object id
            var oId =;

            //get the object type
            var oType = Xrm.Page.context.getQueryStringParameters().etc;

            //set Relationship Name
            var relName = "lead_owning_user";

            //building a url var sUrl = "/userdefined/areas.aspx?oId=" + oId + "&oType=" + oType + "&pagemode=iframe&security=852023&tabSet=" + relName&rof=false&inlineEdit=1;
            //get relative path with orgname as required
            var relativeUrl = Xrm.Page.context.prependOrgName(sUrl);
            window.location = relativeUrl;

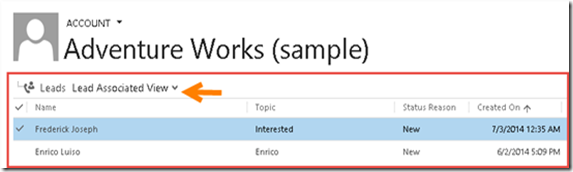

And this is the appearance of that ‘custom Associated View’

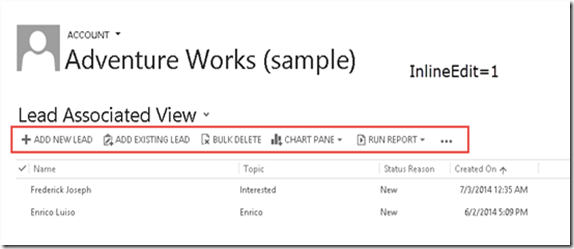

and with InlineEdit = 1

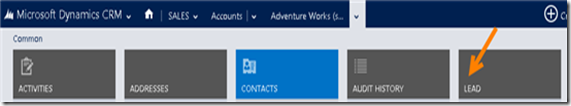

*Remember, the behavior will be shown as expected if you show the web resource in the Navigation link in the parent Entity Form.

To make your job easier, you might try to test the URL first, copy it into the browser and execute it, before you put into the code.

The URL will be having this format:

http://servername:port/organizationname/userdefined/areas.aspx?oId=DB4A2D57-FBBA-E311-9403-  001CC4EECDD6&oType=1&pagemode=iframe&security=852023&tabSet=lead_customer_accounts&rof=false

Hope this helps!
