Debug CRM 2013 Using Plugin Profiler error : System.Security.SecurityException: Microsoft Dynamics CRM has experienced an error. Reference number for administrators or support:

When you need a debugging for your CRM 2011/2013 Plugin, you can do the debugging using 2 methods :

1. Using “Debug –> Attach to Process” then attach to w3wp.exe for OnPremise Plugin
2. Using Plugin Profiler

For some messages, PluginProfiler cannot be used to debug.

But, well here I will not explain you how to use PluginProfiler debugger, but I give you resolution to fix pluginprofiler error.

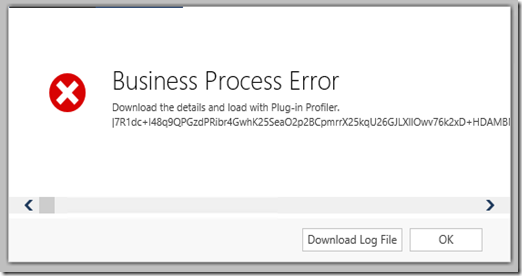

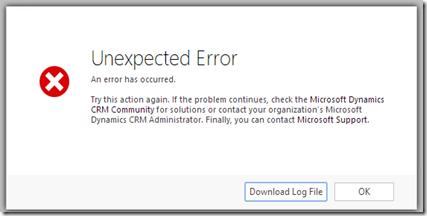

Now, I am trying to debug using Plugin Profiler, but instead of having a good Profiler when I trigger a plugin to do download error log, even I this following error message :



Then I Download log file :

Unhandled Exception: System.ServiceModel.FaultException`1[[Microsoft.Xrm.Sdk.OrganizationServiceFault, Microsoft.Xrm.Sdk, Version=6.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35]]: System.Security.SecurityException: Microsoft Dynamics CRM has experienced an error. Reference number for administrators or support: #D42EB3A1Detail: <OrganizationServiceFault xmlns:i="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://schemas.microsoft.com/xrm/2011/Contracts">   <ErrorCode>-2147220970</ErrorCode>   <ErrorDetails xmlns:d2p1="http://schemas.datacontract.org/2004/07/System.Collections.Generic" />   <Message>System.Security.SecurityException: Microsoft Dynamics CRM has experienced an error. Reference number for administrators or support: #D42EB3A1</Message>   <Timestamp>2014-05-04T07:31:17.7584456Z</Timestamp>   <InnerFault i:nil="true" />   <TraceText> [PluginProfiler.Plugins: PluginProfiler.Plugins.ProfilerPlugin] [d69ec10c-5ed3-e311-940f-001cc4eecdd6: TFP.Xrm.Konica.PluginLogic.AccountPluginPreUpdate: Update of account (Profiler)] </TraceText> </OrganizationServiceFault>

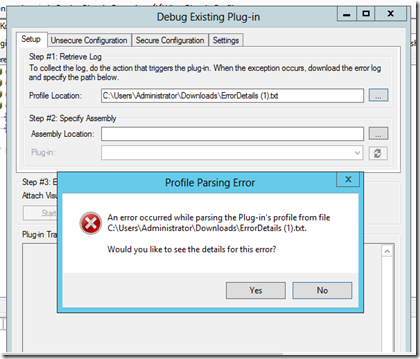

Then I try to debug my plugin using that profile :

Unhandled Exception: System.ArgumentException: Unable to parse the OrganizationServiceFault. Parameter name: serializedReport    at PluginProfiler.Library.ProfilerUtility.ExtractReport(String serializedReport)    at PluginProfiler.Library.ProfilerUtility.DeserializeProfilerReport(String assemblyFilePath, String logFilePath)    at PluginProfiler.Library.ProfilerExecutionUtility.RetrieveReport(String logFilePath)    at Microsoft.Crm.Tools.PluginRegistration.OrganizationHelper.ParseReportOrShowError(IWin32Window owner, FileBrowserControl profilePathControl, Boolean requireReportParse, ProfilerPluginReport& report) Inner Exception: System.InvalidOperationException: Message does not contain a serialized value.    at PluginProfiler.Library.ProfilerUtility.ExtractReportFromFault(OrganizationServiceFault fault)    at PluginProfiler.Library.ProfilerUtility.ExtractReport(String serializedReport)

Ya, of course I will get this error because that Profile is not in parse-able format
I tried this and kept searching and I was tired and frustated about this, then I tried using my first method debugging, but finally I try again using older SDK, especially for CRM 2011 SDK that I have.
I tried some SDK, and then try this SDK and using this Plugin Registration Tool inside this folder :
“..\SDK\tools\pluginregistration\bin\Debug”

In the newest CRM SDK version, you will not longer see pluginregistration folder inside tools folder, but you will find in the bin folder.

Yes, I try to install my profiler using that SDK and that.

I can have this Profile :

Unhandled Exception: System.ServiceModel.FaultException`1[[Microsoft.Xrm.Sdk.OrganizationServiceFault, Microsoft.Xrm.Sdk, Version=6.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35]]: Download the details and load with Plug-in Profiler. |7R1dc+I48q9QPGzdPRgbDMFhCVuzk8wttTsDFTJXW/tyJcttoosteWU5CfvrV7IN4cMBw0wM0ZIHgmS11OputVr qbtz/6TkMao/AY8LoVb3ZsOo1oJh5hE6v6l/vPhlOvfbToH8LEeOiJhvTuEeu6vdCRD3TfHp6ajzZDcanZsuymubvn3 +b4HsIkUFoLBDFUB/0PzLqk2nCkZBj1EiPkuCqLngCdTN9GMvvWDB+nTcZ0s8kCEgMmFEvHlh9c3ej5X5unjFEO8a aCMTFHQlh0LKabcPqGFb7zur22navaTda3WbL7tp/rIz8AqI6EvAsBj8E4sdSBPxhKn5UjcdBMiX05hlwohDM+zmEr PMef05iQiGOv1Iihp6qdTzsOuDZhuNddgywm03DsVzHkB11Op7ValtWS0Gam6Cq+iPjHIKMxmklvrjoetAEo4svW kYb4aaBZNfGBcKtpo2R27500/42IFXttWTFvSo00zaLoioN5cBEtqfTrzHwDKaNXOx0ZPe7sC8CzjqNEjFGHIUgJFdy 2qIFbeOUkHEjJJizmPmigVloPvNQkrrZVAwXHGER13NIdwPSQwLhvNmcR23T6pqTWSwgbHxkQQBYkSFu/AcocII X7EK9X2H2XxQkMEaEj3wpXHIGiM7uZhHMG7m9B5ipwh3iUxDpdBd1WYNH1YWUbyHBruqod0MFEbOlYT4I2b ObCIgPG1rSjhMp9TMpylAGg1G65CYg0iGWMEnLLxKwVJF3+7hSLoXmfnNhT1Q+dXNxT6TglCfpLfjAYXnFod6e 62wOkAH/xqYEo+CLlE9VuYHVRosMTJVW9VmVFESexyWSrf/F9ySKZEO5uO6Zp4FskDji5BGJEvPAPZexABCdqwa 8W2Gnc/VREENVE5L7g0hiDTjjMcqEmwQPkowk0IU96axioF4Y6jIlzEGuHzmxMhOSmycoI2rfGW2aaa0/qlxS8P1W lHWsFTXfaxSquiiIiEnuBDppCGmtSJPR+x4mSmljequJEqdmbSKt7NM1UBabhX7yQBWZS8wl62XfqagDQpU80mo zX5jF+RetFOs9o9oYxfKsTmOUnslxwpWynH0fDQtw2YTLdstw4Bs0bAF6p6tqQ+YRn4Dnzs5b1CF0Y9SFexT42+lX hOQbIBVxxRkOnrrQkhKozbkeYcwSKXslVjnuTRPibeqv4ptCqcpss2mZE2mkoYD8ld53mvVsO2g74Lie0fE9eyHL7rI s44oPZedFesDW56NnXTa+EPgUSq2B9zAbnMSChcrX8pcOdlauo3jqxdBgPtpdDksl6hHB6D0LtFlDL2ZImRm9x+u 6CHFBMIkk6jGhT4w/+AF70oV/udLAAYpjyUic2h8arLXFWdrnQKaS7sDD03RjmMXe1cyImqi74mL7BfU+MR4iOT MvHWKHZzb73DzKlnLMquI1+CgJRC2bcvnprg68F3KH+AmPhOpux58qfmHVYFPCa6eKH7AgjxURqKT/LUUreFG wVWC1w3+mihPZpBqMdru/XtkQ5fGpZ1nVydd2k7lq8SrtjDqSfijrXTqG/Jd0dFSpwEpc7ldMqb0v548qaFtv2yum3 AGXgimGdFYhxbZd0lRMrx2XLFUuw9I3JMcyEEtfeRwJwdM3XEtdSlQpcyVuFE7AAtrzVqBKAu5/pD/W6t37jP79ED W3HJ8zp0Np98tWL0XOjLxhoYviVkW5g5ce+AnE3+igMNci1uf1wzjPE6DTke8H0lhWT17umoqfZ5BDevfiUlbV6iYi h9p4loHkfYwDNHMRflgfq+BxBseyiP/PSgrUKs/br1Wr2s9SdNAU5rT8mJ6b0uZrT9LGOWCmHZa7GUWQpYBkH Xgj+op2UWkc3bbTyS4ei8FWOsykwsr/jIKP+d9qjy/SNOKSu7lPMKt1UdvG2LGMjuvYRttptw2nCZ7huF3fA98G18q yJzZB1zuck+fu0/gaQrYBtUy+USJOMQ1isVRGaUj+zbMAqhJnDkdvXQlgy/Uc12obHe8blEDsPYSZTEacYfktVUcQ bdMKS+xp/M7Dxq+MykaNLOUnhWh8yHRLVjXmkIlir5b9rzG/lmuf2r/GnPkkAP7vfMjlscw16s3rJbuBinlS0fx2tDjn 6JxAdE4getMEonMY6wFE0yvWU680B21DpfSLy9U4dUirsFzdoq00zUg5R0+fQ4q2yodGueKahRhqnBelXbTh+4 mA+meHuWoeX6hnTpu+v2Cha0CoZtnq2vwuh3a/mKJXjox+iW/vId56V5JmFSE9b4jDHpvmG2Kxv4H8lsiUtmqro EhZY60KXE5EWPY2i94QmdK2zH44aBsTs9+WN0miSInedRIFitFwDSLzn77hpr6IqDkH/ZyDfs5BP0cN+vF9fOm6Td cAZIPhuUrLXaCu4h6yUafdtcHZreW+Jehn5P5fTltJbFAbhlEAIVCBFirosPidApt2zGKRGb7DUCJ6ciweczht9EiI+CxHc b8dsgB2o8uiDbOwgXpyC3/KHVsMvWJWT9Kftt6ApHP/7yvPU9B7KUnSIpAHNTc4GS4ctrnn0cPxB88D71OApqe7 p6+RfcENIZeCKtjZFrIoq9IBgWur4WrmitY464mznjjriXeuJ1pvoycK44DV4/Q1B+kLDfqLx6+8Z6Fp981dbV46efVN DIsWZd/DUADQ/wXFE+CPBEtV4kWMUPGFicVRP380UEP2zXJt+8M4p8QtRPLQM0gPQ31zvbq/ctQZtPqrZ5/0dR my3c2jVMyvr6pX18Y8PjyLAM8jyGNFN7mWEw5bX6ihJE2t8cHeceh9cwHbN7MXfgz+Bg==|Detail: <OrganizationServiceFault xmlns:i=http://www.w3.org/2001/XMLSchema-instance xmlns="http://schemas.microsoft.com/xrm/2011/Contracts">   <ErrorCode>-2147220891</ErrorCode>   <ErrorDetails xmlns:d2p1="http://schemas.datacontract.org/2004/07/System.Collections.Generic">     <KeyValuePairOfstringanyType>       <d2p1:key>OperationStatus</d2p1:key>       <d2p1:value xmlns:d4p1="http://www.w3.org/2001/XMLSchema" i:type="d4p1:string">0</d2p1:value>     </KeyValuePairOfstringanyType>     <KeyValuePairOfstringanyType>       <d2p1:key>SubErrorCode</d2p1:key>       <d2p1:value xmlns:d4p1="http://www.w3.org/2001/XMLSchema" i:type="d4p1:string">-2146233088</d2p1:value>     </KeyValuePairOfstringanyType>   </ErrorDetails>   <Message>Download the details and load with Plug-in Profiler. |7R1dc+I48q9QPGzdPRgbDMFhCVuzk8wttTsDFTJXW/tyJcttoosteWU5CfvrV7IN4cMBw0wM0ZIHgmS11OputVr qbtz/6TkMao/AY8LoVb3ZsOo1oJh5hE6v6l/vPhlOvfbToH8LEeOiJhvTuEeu6vdCRD3TfHp6ajzZDcanZsuymubvn3 +b4HsIkUFoLBDFUB/0PzLqk2nCkZBj1EiPkuCqLngCdTN9GMvvWDB+nTcZ0s8kCEgMmFEvHlh9c3ej5X5unjFEO8a aCMTFHQlh0LKabcPqGFb7zur22navaTda3WbL7tp/rIz8AqI6EvAsBj8E4sdSBPxhKn5UjcdBMiX05hlwohDM+zmEr PMef05iQiGOv1Iihp6qdTzsOuDZhuNddgywm03DsVzHkB11Op7ValtWS0Gam6Cq+iPjHIKMxmklvrjoetAEo4svW kYb4aaBZNfGBcKtpo2R27500/42IFXttWTFvSo00zaLoioN5cBEtqfTrzHwDKaNXOx0ZPe7sC8CzjqNEjFGHIUgJFdy 2qIFbeOUkHEjJJizmPmigVloPvNQkrrZVAwXHGER13NIdwPSQwLhvNmcR23T6pqTWSwgbHxkQQBYkSFu/AcocII X7EK9X2H2XxQkMEaEj3wpXHIGiM7uZhHMG7m9B5ipwh3iUxDpdBd1WYNH1YWUbyHBruqod0MFEbOlYT4I2b ObCIgPG1rSjhMp9TMpylAGg1G65CYg0iGWMEnLLxKwVJF3+7hSLoXmfnNhT1Q+dXNxT6TglCfpLfjAYXnFod6e 62wOkAH/xqYEo+CLlE9VuYHVRosMTJVW9VmVFESexyWSrf/F9ySKZEO5uO6Zp4FskDji5BGJEvPAPZexABCdqwa 8W2Gnc/VREENVE5L7g0hiDTjjMcqEmwQPkowk0IU96axioF4Y6jIlzEGuHzmxMhOSmycoI2rfGW2aaa0/qlxS8P1W lHWsFTXfaxSquiiIiEnuBDppCGmtSJPR+x4mSmljequJEqdmbSKt7NM1UBabhX7yQBWZS8wl62XfqagDQpU80mo zX5jF+RetFOs9o9oYxfKsTmOUnslxwpWynH0fDQtw2YTLdstw4Bs0bAF6p6tqQ+YRn4Dnzs5b1CF0Y9SFexT42+lX hOQbIBVxxRkOnrrQkhKozbkeYcwSKXslVjnuTRPibeqv4ptCqcpss2mZE2mkoYD8ld53mvVsO2g74Lie0fE9eyHL7rI s44oPZedFesDW56NnXTa+EPgUSq2B9zAbnMSChcrX8pcOdlauo3jqxdBgPtpdDksl6hHB6D0LtFlDL2ZImRm9x+u 6CHFBMIkk6jGhT4w/+AF70oV/udLAAYpjyUic2h8arLXFWdrnQKaS7sDD03RjmMXe1cyImqi74mL7BfU+MR4iOT MvHWKHZzb73DzKlnLMquI1+CgJRC2bcvnprg68F3KH+AmPhOpux58qfmHVYFPCa6eKH7AgjxURqKT/LUUreFG wVWC1w3+mihPZpBqMdru/XtkQ5fGpZ1nVydd2k7lq8SrtjDqSfijrXTqG/Jd0dFSpwEpc7ldMqb0v548qaFtv2yum3 AGXgimGdFYhxbZd0lRMrx2XLFUuw9I3JMcyEEtfeRwJwdM3XEtdSlQpcyVuFE7AAtrzVqBKAu5/pD/W6t37jP79ED W3HJ8zp0Np98tWL0XOjLxhoYviVkW5g5ce+AnE3+igMNci1uf1wzjPE6DTke8H0lhWT17umoqfZ5BDevfiUlbV6iYi h9p4loHkfYwDNHMRflgfq+BxBseyiP/PSgrUKs/br1Wr2s9SdNAU5rT8mJ6b0uZrT9LGOWCmHZa7GUWQpYBkH Xgj+op2UWkc3bbTyS4ei8FWOsykwsr/jIKP+d9qjy/SNOKSu7lPMKt1UdvG2LGMjuvYRttptw2nCZ7huF3fA98G18q yJzZB1zuck+fu0/gaQrYBtUy+USJOMQ1isVRGaUj+zbMAqhJnDkdvXQlgy/Uc12obHe8blEDsPYSZTEacYfktVUcQ bdMKS+xp/M7Dxq+MykaNLOUnhWh8yHRLVjXmkIlir5b9rzG/lmuf2r/GnPkkAP7vfMjlscw16s3rJbuBinlS0fx2tDjn 6JxAdE4getMEonMY6wFE0yvWU680B21DpfSLy9U4dUirsFzdoq00zUg5R0+fQ4q2yodGueKahRhqnBelXbTh+4 mA+meHuWoeX6hnTpu+v2Cha0CoZtnq2vwuh3a/mKJXjox+iW/vId56V5JmFSE9b4jDHpvmG2Kxv4H8lsiUtmqro EhZY60KXE5EWPY2i94QmdK2zH44aBsTs9+WN0miSInedRIFitFwDSLzn77hpr6IqDkH/ZyDfs5BP0cN+vF9fOm6Td cAZIPhuUrLXaCu4h6yUafdtcHZreW+Jehn5P5fTltJbFAbhlEAIVCBFirosPidApt2zGKRGb7DUCJ6ciweczht9EiI+CxHc b8dsgB2o8uiDbOwgXpyC3/KHVsMvWJWT9Kftt6ApHP/7yvPU9B7KUnSIpAHNTc4GS4ctrnn0cPxB88D71OApqe7 p6+RfcENIZeCKtjZFrIoq9IBgWur4WrmitY464mznjjriXeuJ1pvoycK44DV4/Q1B+kLDfqLx6+8Z6Fp981dbV46efVN DIsWZd/DUADQ/wXFE+CPBEtV4kWMUPGFicVRP380UEP2zXJt+8M4p8QtRPLQM0gPQ31zvbq/ctQZtPqrZ5/0dR my3c2jVMyvr6pX18Y8PjyLAM8jyGNFN7mWEw5bX6ihJE2t8cHeceh9cwHbN7MXfgz+Bg==|</Message>   <Timestamp>2014-05-04T07:43:13.3182314Z</Timestamp>   <InnerFault i:nil="true" />   <TraceText> [PluginProfiler.Plugins: PluginProfiler.Plugins.ProfilerPlugin] [c0bd8b04-5dd3-e311-80bb-00155d02400c: TFP.Xrm.Konica.PluginLogic.AccountPluginPreCreate: Create of account (Profiler)] </TraceText> </OrganizationServiceFault>

And I can do debugging and I can view my profile from that file, meaning that this file is parse-able.

I just try to view my profile using that downloaded log file error.



From here, I can see my input arguments and also I can do debugging as usual.
Okay, here is the final resolutions I can do :

ERROR :

Unhandled Exception: System.ServiceModel.FaultException`1[[Microsoft.Xrm.Sdk.OrganizationServiceFault, Microsoft.Xrm.Sdk, Version=6.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35]]: System.Security.SecurityException: Microsoft Dynamics CRM has experienced an error. Reference number for administrators or support: #D42EB3A1Detail: <OrganizationServiceFault xmlns:i="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://schemas.microsoft.com/xrm/2011/Contracts">   <ErrorCode>-2147220970</ErrorCode>   <ErrorDetails xmlns:d2p1="http://schemas.datacontract.org/2004/07/System.Collections.Generic" />   <Message>System.Security.SecurityException: Microsoft Dynamics CRM has experienced an error. Reference number for administrators or support: #D42EB3A1</Message>   <Timestamp>2014-05-04T07:31:17.7584456Z</Timestamp>   <InnerFault i:nil="true" />   <TraceText> [PluginProfiler.Plugins: PluginProfiler.Plugins.ProfilerPlugin] [d69ec10c-5ed3-e311-940f-001cc4eecdd6: TFP.Xrm.Konica.PluginLogic.AccountPluginPreUpdate: Update of account (Profiler)] </TraceText> </OrganizationServiceFault>

CAUSE :

After long journey of investigation, I found the reason behind this and can finish my errand here.

The problem is..

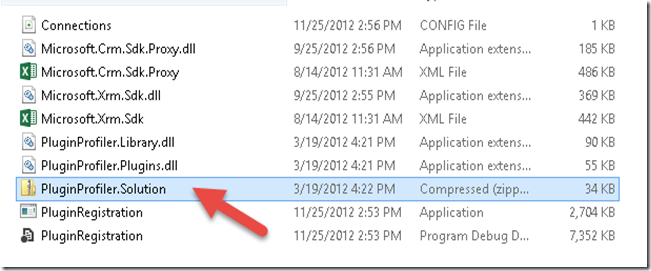

Problem is in PluginProfiler.Solution file



RESOLUTIONS :

1. Using CRM 2011 Plugin Registration older SDK, this is to ease you, please download this :

PluginRegistration to Fix Plugin Profiler Error

or using this one

PluginRegistration to Fix Plugin profiler Error SDK CRM 2011 - Bin Only

2. Using CRM 2013 Plugin Registration tool, but using the PluginProfiler.Solution from CRM 2011

Well, if you still insist to using CRM 2013 Tool, here you can do these steps.

This can be tricky, because those two files have different format.

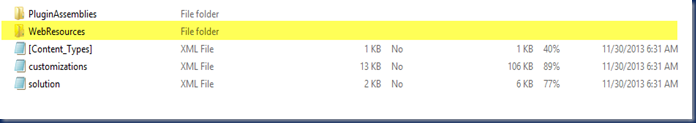

CRM 2013 SDK :

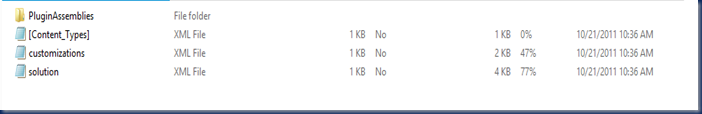

CRM 2011 SDK



So you have to combine that and create new .zip file.

Okay, again I would like to make it easier for you, just download this PluginProfiler.solution

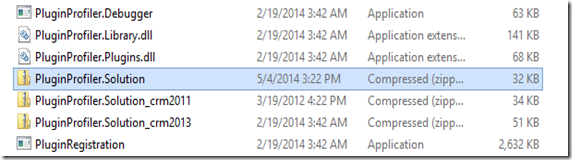

PluginProfiler.SolutionFixCombined

and then copy paste to your CRM 2013 SDK bin folder, don’t forget to backup your old .zip file.



Then as usual go to your Plugin Registration Tool and Install Profiler.

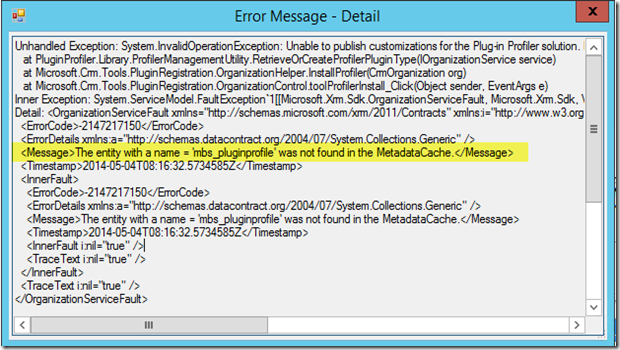

(If you don’t combine the file and just copy file from 2011 to 2013, which is there is no web resources folder, then when you install the Profiler you will get error)

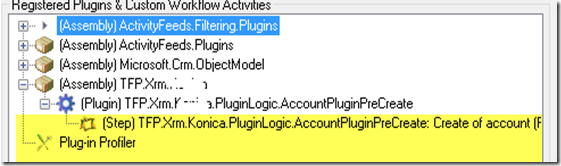

And you can see after that you will be able to see your Plugin Profile

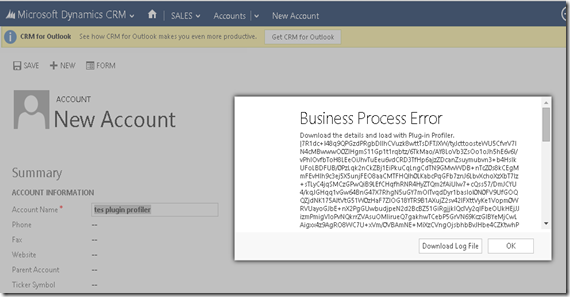

Test this by creating a new Account to trigger plugin

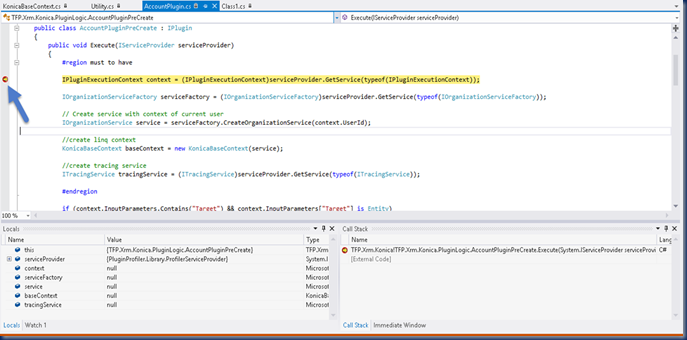

Look, now I can debug my Plugin :)



So, you can download these files :

CRM 2011 Plugin Registration Tool SDK - Bin Only Fix Plugin Profiler

CRM 2013 Plugin Registration Tool SDK - Fix Plugin Profiler

Hope it helps!
